Illuminated Office Wall Signs & Logos

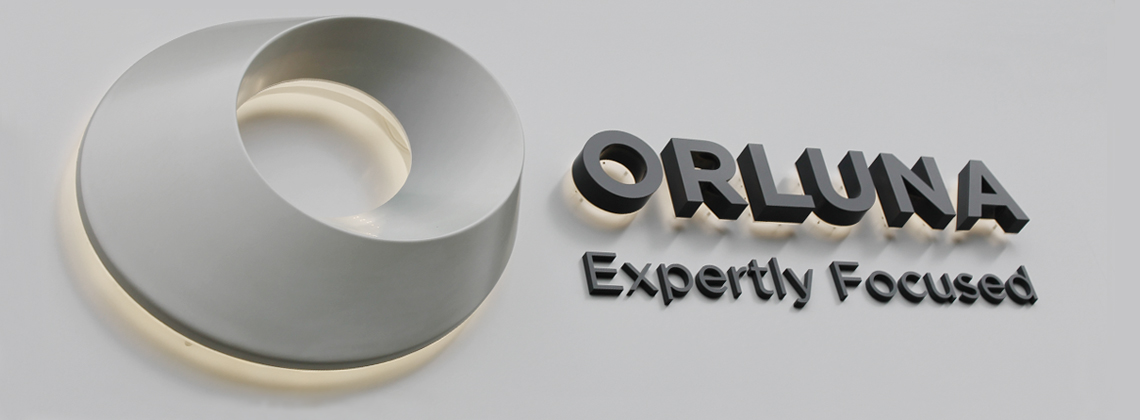

3D Company Logo illuminated with Back-Lit Halo LED lights

Halo-illuminated letters are a popular method of illuminating either the letters or a logo on an office wall. This method of lighting can be used for both internal and external signs. The letters are fabricated to create a built-up 3d letter which is hollow inside. L.E.D lights are then fitted inside the letters which illuminates the letters from behind and which projects the light onto the wall or surface behind the letters.

A number of coloured L.E.D lights can be used to illuminate the letters however the white LEDs are the most commonly used.

In poorly-lit areas this method of lighting will mean that the face of the letters will be dark and not illuminated as the light will be positioned from behind which creates a silhouette-style glow of the logo or letters, however this still should produce enough light to make the lettering readable.

3D Company Logo illuminated with Face-Lit LED lights

Face-lit illuminated office logos are a popular method of illuminating either the letters or logo shape on you office wall sign. This method of lighting can be used for both internal and external signs.

The letters are fabricated to create a built-up 3d letter which is hollow inside. A series of L.E.D lights are then fitted inside the letters which illuminates the face of the logo which is produced in an acrylic which lights up in the desired colour(s). A range of coloured L.E.D lights can be used to illuminate the letters

In poorly-lit areas this method of lighting will mean that the face of the letters will be illuminated enough light to make the logo clearly visible and readable.

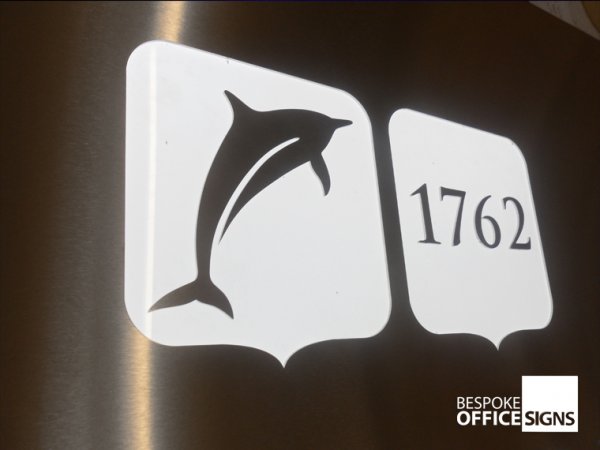

Illuminated Office Sign box - with slightly raised acrylic letters which illuminate from within

Stencil cut sign trays with slightly raised acrylic letters are produced by laser-cutting and removing the letters from a sheet of aluminium which are then replaced with individually cut pieces of acrylic which makes the logo slightly raised by approx. 10mm. A series of LED lights are then used to illuminate the text clearly, making it easy to read.

The aluminium used to create the sign is powder-coated in a vast range of RAL colours or it can be vinyl-wrapped in a series of digitally printed graphics.

This method of production gives the sign a slightly embossed raised effect and the letters appear flat on the fascia however the letters are illuminated from the face of the sign which clearly displays the logo making it easy to read and see from a distance.

Bespoke Shaped Illuminated Office Logo - illuminated within

Illuminated office signs and logos can be manufactured in a range of shapes and sizes, they don't always need to be square! They can also be illuminated in a number of methods to achieve the look and lighting effect you desire.

The metal used to create the sign can be powder-coated in a vast range of RAL colours or it can be vinyl-wrapped in a series of digitally printed graphics. Alternatively we're able to use metals such as polished stainless steel or brushed stainless steel for a high-end finish.

This method of production gives the sign a slightly embossed raised effect and the letters appear flat on the fascia however the letters are illuminated from the face of the sign which clearly displays the logo making it easy to read and see from a distance.

3D Acrylic Logo - illuminated with LED lights

Built up illuminated acrylic logos are a great way of creating a raised three-dimensional design which stands out proud off the wall. The acrylic logos are carefully constructed together with opal acrylic which is cnc-cut to the shape of the logo or font and then fabricated together to create the desired depth of the design. The logos which are hollow are fitted with a series of L.E.D lights which illuminates it from the face and sides giving maximum illumination.

A number of coloured L.E.D lights can be used to illuminate the logo however the white LEDs are most common as it illuminates the clearest.

This method of production ensures the light is evenly distributed throughout the sign and different coloured acrylic or vinyl filters can be used to achieve a range of different colours. Unlike the halo-illuminated letters where light is projected from the rear of the letters, the illuminated acrylic letters are all illuminated from the front making it clear and easy to read from a distance.

3D Vacuum Formed Logos - illuminated from behind

The plastic used to create the shape is available is a range of pre-coloured acrylic, subject to the colours in the manufacture’s colour range however the casts can be painted in a specific colour or vinyl wrapped in a digital print displaying your desired image.

LED lights can then be mounted behind so that the logo illuminates to create either a halo-illumination or a face-light illumination.

3D Acrylic Letters - illuminated letters with black out vinyl applied to the face of the letters

Made in the same way as the acrylic letters, Built up illuminated acrylic letters are a good way of creating a three-dimensional sign which stands out proud from the wall.

The acrylic letters are carefully constructed together with opal acrylic which is then fabricated together to create the desired depth of the letters. Black-out vinyl is then applied to the face of the letters which stops the light shining thorough and the hollow letters are fitted with a series of L.E.D lights which illuminates the areas of each letters which aren’t covered in vinyl.

A number of coloured L.E.D lights can be used to illuminate the letters however the white LEDs are most common as it illuminates the clearest.Unlike the halo-illuminated letters where light is projected from the rear of the letters, the illuminated acrylic letters are all illuminated from the front making it clear and easy to read from a distance.

LP Flex Raised Letters - illuminated from the face and with steel sides

LPflex letters are aimed at the high-end of the market and are of exceptional quality. This method of production makes it possible to produce such a wide range of striking colours, designs and provides flawless illumination. The process of production makes this style of lettering much more versatile compared to the more traditional methods of production.

The LED lighting system means that the letters can be illuminated from the front, sides and back – in a similar way as a neon light, however the LED lights ensure a longer lasting product and more energy efficient.

Made from thick cut acrylic, the LPflex letters use the latest production methods which ensures perfection and reliability. Suitable for both internal and external use, a range for lighting styles and methods can be used or combined within each letters so you can have a letter illuminated a particular colour from the front and a different method or colour from behind – making it a perfect choice when creating a unique sign.

Neon Signs - illuminated with neon tubes

Neon letters and logos can be used to make up the illuminated letters on a shop fascia or shop sign board in the same way as shop lettering. The letters are hand formed and shaped using a template of the letters or logo are then mounted onto an aluminium fascia panel or an existing wall.

Mounted the neon letters onto a non-transparent panel is a great way of hiding all the wires and cables which connect all the neon letters together and powers all the neon tubes. The aluminium fascia can then be sign-written using other materials such as vinyl to ensure the text and lettering is visible during the daytime and clearly visible and illuminated at night with the neon lettering.

With a range of colours, sizes and styles available, we’re able to provide a range of options available from simple designs to the more complex styles.

3D Company Logo - Illuminated with an external Trough Light

Rather than illuminating a logo internally with a series of LED lights so that the letters are individually illuminated, we can produce a bespoke LED trough light which is positioned above the office logo and which illuminates the whole logo from above.

The trough light is designed to be the correct length needed to sit proportionately above the logo and the outer casing is available in a range of colours to either suit the wall colour it's being mounted to or to keep in line with the colours of the logo branding guidelines.

Trough lights are typically fitted with a series of LED lights for low power consumption however florescent tube lighting can be used as an alternative.

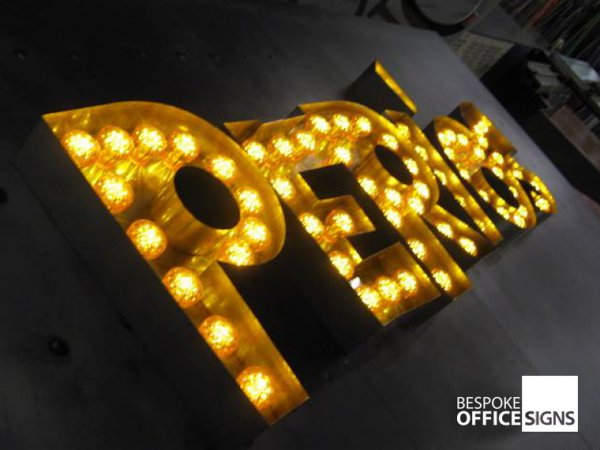

Built Up 3D Stainless Steel Letters - illuminated with fairground lights

For a unique style of lettering, the built up stainless steel letters with internal fairground lights are becoming more and more popular these days in swanky bars and for inner city events.

Made from stainless steel which is fabricated to create a three-dimensional hollow letter or logo, the letter is powder-coated a specific RAL colour and then fitted with a series of fairground lights which is visible from the front of the sign and which produces enough light to fully illuminate the design.

A range of coloured fairground lights can be used to create each design and the letters are available in polished stainless steel and brushed stainless steel. This unique style of lettering can be made for both internal and external use, and can be fitted with a variety or fixing methods for wall mounting or freestanding.
